PCIe Adapters

PCIe Adapters

PCIe U.2 Dual Port Transposer, Set of 4 transposer adapters

U.2 Transposer Adapter Datasheet

Teledyne LeCroy's U.2 Transposer Adapters allow the user to isolate data traffic from a specific port on a U.2 SSD and send it to a specific port on the host backplane. During testing of dual-port U.2 SSDs (or servers that utilize dual-port U.2 SSDs), this allows individual ports to be tested and any problems which might exist to be isolated to specific ports on the SSD or server backplane.

  • Simple to use for port isolation and test
  • Available in a set of four versions:
    • Host Port A to SSD Port A (Port B blocked)
    • Host Port A to SSD Port B (Port B blocked)
    • Host Port B to SSD Port A (Port A blocked)
    • Host Port B to SSD Port B (Port A blocked)
    • Supports link widths up to x2
  • Supports I2C and PCIe® side band signal connectivity
  • Supports data rates of 2.5 GT/s, 5 GT/s and 8 GT/s (PCIe 3.0 compliant)
  • Supports DP_EN# on/off via switch
  • Provides multiple test points for measurement of active signals
  • Dimensions (L x W x H): 13.5 mm x 69 mm x 18.5 mm (0.53" x 2.73" x 0.73")
  • Displacement of SSD: 12.1 mm (0.47”)

SKU: PE-U2-Dual Port Transposer-X


U.2(SFF-8639)-to-PCIe Adapters with Multi-power Connectors and Test Pad Support

Teledyne LeCroy’s enhanced U.2 (SFF-8639) adapter cards provide developers with extremely versatile tools to speed development of new U.2 (SFF-8639) designs and to troubleshoot existing U.2 (SFF-8639) issues.  Features include test points and multiple power connectors to make it easier to test different devices and designs.

Two configurations are provided:  one for single-port devices and Port A of dual-port designs; and the second for Port B of dual-port designs.

Key Features:

  • Allows U.2 (SFF-8639) devices to connect to PCI Express slots
  • Two configurations available: Standard version supports single-port devices and Port A of dual port devices, testing for NVMe x4 or x2 or SCSI Express X4 or x2; Port B version supports the second port of dual port drives for NVMe x2 or SCSI Express x2
  • Provides on-board power connectors including 75W ATX, 150W ATX, SATA, and Molex ATX
  • Provides multiple test points to monitor power, clock signals, etc.
  • Supports data rates up to 8 GT/s
  • Supports 2.5" U.2 (SFF-8639) devices in reinforced slot
  • Can be combined with PCIe slot interposer and analyzer to capture and display traffic with full decoding of NVMe and SCSI Express traffic

U.2(SFF-8639)-to-PCIe Adapter

U.2 (SFF-8639) Adapter Datasheet
  • Allows U.2 (SFF-8639) devices to connect to PCI Express slots
  • Supports up to x4 PCIe lanes
    • NVMe and SCSI Express at x4 lane widths
  • Supports data rates up to 8 GT/s
  • Supports 2-1/2” U.2 (SFF-8639) devices

U.2 (SFF-8639) x2 Port B to x4 PCI Express Socket Adapter
  • U.2 (SFF-8639) Adapter Datasheet
  • Allows U.2 (SFF-8639) Dual Port devices to connect to PCI Express slots
  • Supports up to x4 PCIe lanes
  • NVMe and SCSI Express Port B x2 lane widths
  • Supports data rates up to 8 GT/s
  • Supports 2-1/2” U.2 (SFF-8639) devices

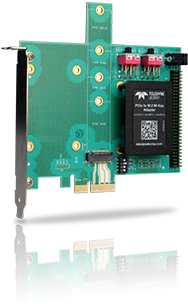

M.2-to-PCIe adapter cards
Teledyne LeCroy’s M.2-to-PCIe adapter cards provide developers with extremely versatile tools to speed development of new M.2 designs and to troubleshoot existing M.2 issues.  Two configurations are offered to support either M-Key or B-Key (both support B-M devices).
M.2-to-PCIe Datasheet

PCIe External Cable 3.0 -to-PCIe Adapter

PCIe External Cable 3.0 -to-PCIe Adapter Datasheet
  • Allows PCIe external cable devices to connect directly to standard PCI Express slot
  • Allows direct testing of PCIe® device functions
  • Allows testing of device drivers for new PCIe external cable devices using a standard computer system
  • Supports I2C and PCIe side band signal connectivity
  • Supports data rates of 2.5 GT/s, 5 GT/s and 8 GT/s (PCIe 3.0 compliant)
  • Supports link widths up to x16

PEART16A
  • PCI Express x16 Right Angle Adapter, A-Side Up
  • Allows user to install the PCI Express Card at a Right Angle to allow for probing of the A/Solder Side of the UUT board.

PEART16B
  • PCI Express x16 Right Angle Adapter, B-Side Up
  • Allows user to install the PCI Express Card at a Right Angle to allow for probing of the B/Component Side of the UUT board

PE004UIA-X
  • PCI Express x16 to x1 Adapter
  • Allows user to insert a x16 PCI Express Card in a x1 slot.

PE003UIA-X
  • PCI Express x16 to x4 Adapter
  • Allows user to insert a x16 PCI Express Card in a x4 slot.

PE002UIA-X
  • PCI Express x16 to x8 Adapter
  • Allows user to insert a x16 PCI Express Card in a x8 slot.

EXP2PCIE
  • ExpressCARD to PCI Express Adapter
  • Allows user to test ExpressCARD Module on the PCI Express bus.
  • The LEDs show that the signal is asserted low to the device.
  • The USB connector can monitor and capture traces using a Teledyne LeCroy protocol analyzer.

PCIE2EXP
  • PCI Express to ExpressCARD Adapter
  • Allows user to test PCI Express cards on the ExpressCARD bus.
  • JP3 -- The 12 Vdc connector on the board can be used to supply power to the board.
  • JR3 - The USB connector can monitor and capture traces from the motherboard using a Teledyne LeCroy analyzer.
  • Jumper JP2, JP4, JP5 - Control signals for the PCIe card bus, when shorted the signals are asserted.
  • Jumper JP1 - is a bypass for the 12 Vdc power connector and when shorted holds the +12 Vdc input to the PERST circuit high.

PELOOP-BACK
  • PCI Express x16, Tx to Rx Loopback Adapter.
  • Allows direct connection from Tx to Rx for Link Training Verification Testing on PCI Express x16

MINI2PCIE
  • PCI Express Mini to PCI Express Adapter
  • Allows user to test PCI Express Mini modules on the PCI Express bus.
  • Note: The manufacturer of the latch spring shown above, no longer sells the latch, therefore these adapters do not ship with a latch.

MINI2EXP
  • PCI Express Mini to ExpressCARD Adapter
  • Allows user to test PCI Express Mini modules on the ExpressCARD bus.
  • Note: The manufacturer of the latch spring shown above, no longer sells the latch, therefore these adapters do not ship with a latch.

PETERMX
  • PCI Express x16 50 Ohm Bus Termination Adapter
  • Allows user to terminate the PCI Express Rx and Tx pairs.
